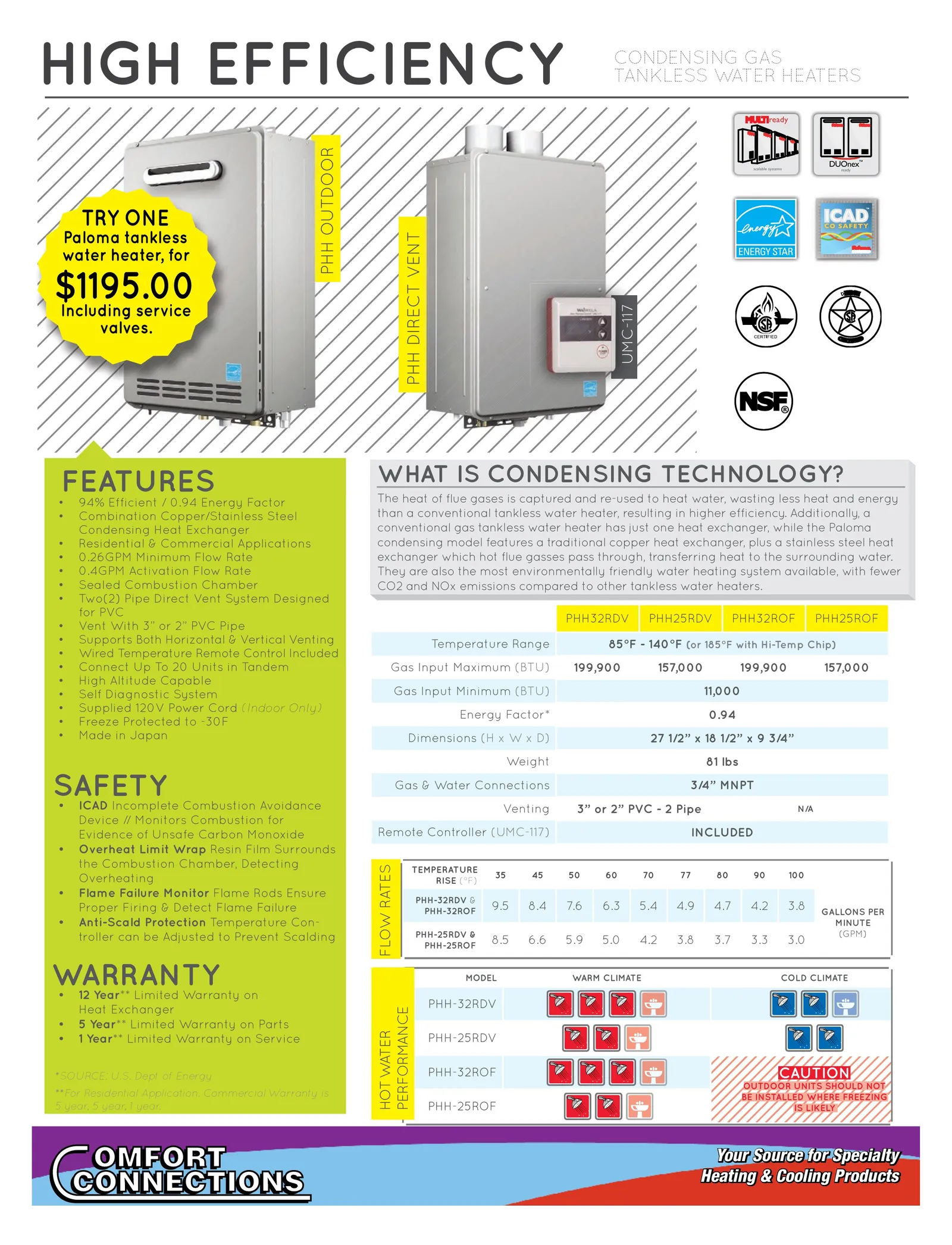

HVAC Xchanger Autumn 2013, Ontario Edition · Page 40Pages 40–41
HIGH EFFICIENCY
CONDENSING GAS TANKLESS WATER HEATERS
MULTIready
$1195.00 Including service
ICAD
CO SAFETY
valves.
FEATURES
• •
• • • • •
• • • • • • • • •
94% Efficient / 0.94 Energy Factor Combination Copper/Stainless Steel Condensing Heat Exchanger Residential & Commercial Applications 0.26GPM Minimum Flow Rate 0.4GPM Activation Flow Rate Sealed Combustion Chamber Two(2) Pipe Direct Vent System Designed for PVC Vent With 3” or 2” PVC Pipe Supports Both Horizontal & Vertical Venting Wired Temperature Remote Control Included Connect Up To 20 Units in Tandem High Altitude Capable Self Diagnostic System Supplied 120V Power Cord (Indoor Only) Freeze Protected to -30F Made in Japan
WHAT IS CONDENSING TECHNOLOGY?
PHH32RDV
Gas Input Maximum (BTU)
WARRANTY
• •
12 Year** Limited Warranty on Heat Exchanger 5 Year** Limited Warranty on Parts 1 Year** Limited Warranty on Service
*SOURCE: U.S. Dept of Energy
**For Residential Application. Commercial Warranty is 5 year, 5 year, 1 year.
OMFORT CONNECTIONS
PHH32ROF
199,900
157,000
11,000
Energy Factor*
0.94
157,000
27 1/2” x 18 1/2” x 9 3/4”
Dimensions (H x W x D)
81 lbs
Weight
3/4” MNPT
Gas & Water Connections
Venting
PHH25ROF
199,900
Gas Input Minimum (BTU)
3” or 2” PVC - 2 Pipe
N/A
INCLUDED
Remote Controller (UMC-117)
FLOW RATES
PHH25RDV
85°F - 140°F (or 185°F with Hi-Temp Chip)
Temperature Range
TEMPERATURE RISE (°F)
35
45
50
60
70
77
80
90
100
PHH-32RDV & PHH-32ROF
9.5
8.4
7.6
6.3
5.4
4.9
4.7
4.2
3.8
PHH-25RDV & PHH-25ROF
8.5
6.6
5.9
5.0
4.2
3.8
3.7
3.3
3.0
MODEL
HOT WATER PERFORMANCE
ICAD Incomplete Combustion Avoidance Device // Monitors Combustion for Evidence of Unsafe Carbon Monoxide Overheat Limit Wrap Resin Film Surrounds the Combustion Chamber, Detecting Overheating Flame Failure Monitor Flame Rods Ensure Proper Firing & Detect Flame Failure Anti-Scald Protection Temperature Controller can be Adjusted to Prevent Scalding
EN G IN EER ED
The heat of flue gases is captured and re-used to heat water, wasting less heat and energy than a conventional tankless water heater, resulting in higher efficiency. Additionally, a conventional gas tankless water heater has just one heat exchanger, while the Paloma condensing model features a traditional copper heat exchanger, plus a stainless steel heat exchanger which hot flue gasses pass through, transferring heat to the surrounding water. They are also the most environmentally friendly water heating system available, with fewer CO2 and NOx emissions compared to other tankless water heaters.
SAFETY
ready
UMC-117
Paloma tankless water heater, for
DUOnex ™
scalable systems
PHH DIRECT VENT
TRY ONE
PHH OUTDOOR
WARM CLIMATE
GALLONS PER MINUTE (GPM)
COLD CLIMATE
PHH-32RDV
PHH-25RDV
PHH-32ROF
PHH-25ROF
CAUTION
OUTDOOR UNITS SHOULD NOT BE INSTALLED WHERE FREEZING IS LIKELY
Your Source for Specialty Heating & Cooling Products
OMFORT OMFORT CONNECTIONS CONNECTIONS
Your Source for Specialty Heating & Cooling Products
CONNECTIONS

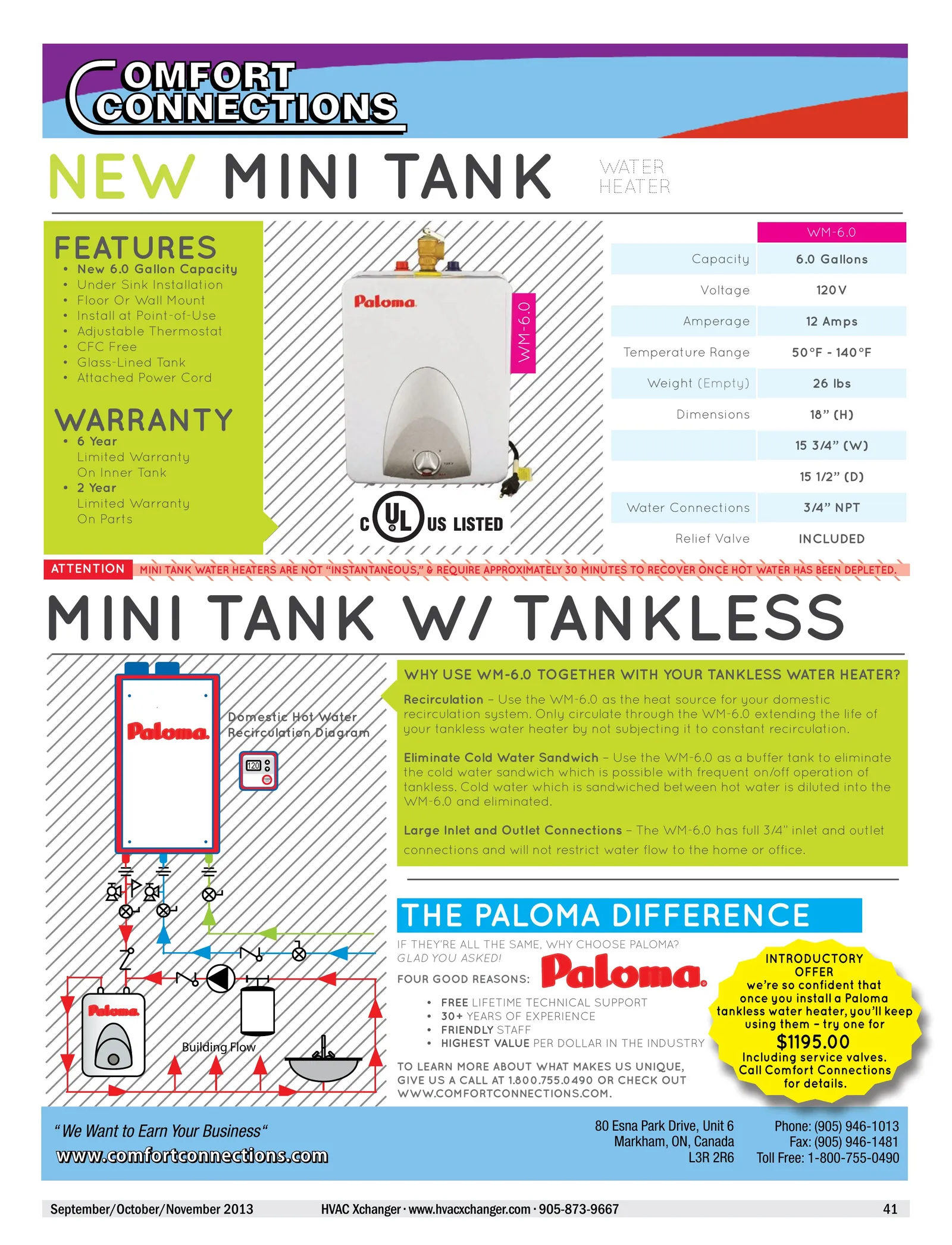

NEW MINI TANK
WATER HEATER
WM-6.0
FEATURES
WM-6.0
• New 6.0 Gallon Capacity • Under Sink Installation • Floor Or Wall Mount • Install at Point-of-Use • Adjustable Thermostat • CFC Free • Glass-Lined Tank • Attached Power Cord
6.0 Gallons
Voltage
120V
Amperage
12 Amps
Temperature Range
WARRANTY
• 6 Year Limited Warranty On Inner Tank • 2 Year Limited Warranty On Parts
ATTENTION
Capacity
50°F - 140°F
Weight (Empty)
26 lbs
Dimensions
18” (H)
15 3/4” (W)
15 1/2” (D)
Water Connections
3/4” NPT
Relief Valve
INCLUDED
MINI TANK WATER HEATERS ARE NOT “INSTANTANEOUS,” & REQUIRE APPROXIMATELY 30 MINUTES TO RECOVER ONCE HOT WATER HAS BEEN DEPLETED.
MINI TANK W/ TANKLESS
WHY USE WM-6.0 TOGETHER WITH YOUR TANKLESS WATER HEATER?
Domestic Hot Water Recirculation Diagram
Recirculation – Use the WM-6.0 as the heat source for your domestic recirculation system. Only circulate through the WM-6.0 extending the life of your tankless water heater by not subjecting it to constant recirculation.
Eliminate Cold Water Sandwich – Use the WM-6.0 as a buffer tank to eliminate the cold water sandwich which is possible with frequent on/off operation of tankless. Cold water which is sandwiched between hot water is diluted into the WM-6.0 and eliminated.
120
POWER
ON/OFF
Large Inlet and Outlet Connections – The WM-6.0 has full 3/4” inlet and outlet connections and will not restrict water flow to the home or office.
THE PALOMA DIFFERENCE
IF THEY’RE ALL THE SAME, WHY CHOOSE PALOMA? GLAD YOU ASKED!
FOUR GOOD REASONS:
• • • •
Building Flow
FREE LIFETIME TECHNICAL SUPPORT 30+ YEARS OF EXPERIENCE FRIENDLY STAFF HIGHEST VALUE PER DOLLAR IN THE INDUSTRY
INTRODUCTORY OFFER we’re so confident that once you install a Paloma tankless water heater, you’ll keep using them – try one for
TO LEARN MORE ABOUT WHAT MAKES US UNIQUE, GIVE US A CALL AT 1.800.755.0490 OR CHECK OUT WWW.COMFORTCONNECTIONS.COM.
“ We Want to Earn Your Business “
www.comfortconnections.com
September/October/November 2013
80 Esna Park Drive, Unit 6 Markham, ON, Canada L3R 2R6
$1195.00
Including service valves. Call Comfort Connections for details.
Phone: (905) 946-1013 Fax: (905) 946-1481 Toll Free: 1-800-755-0490
