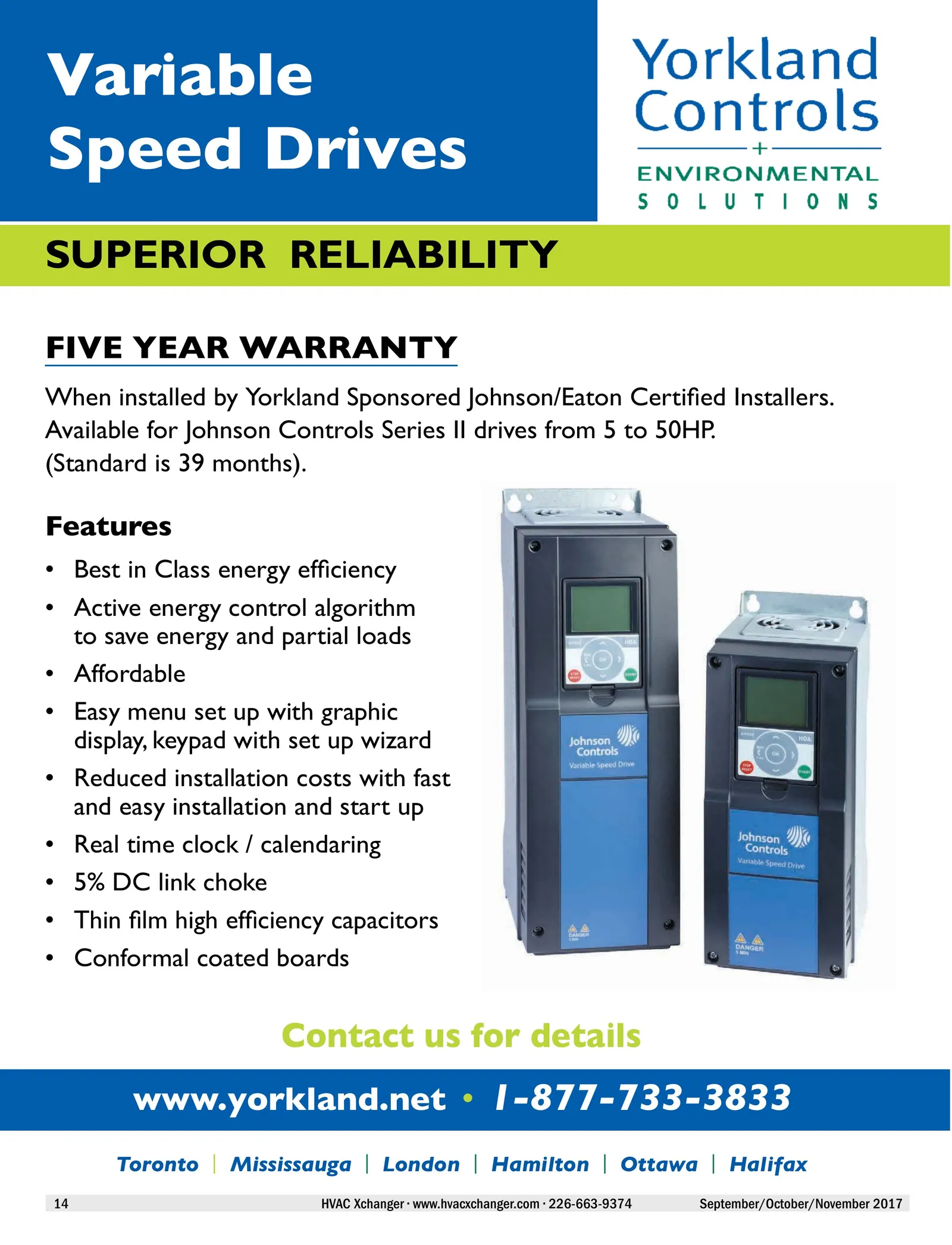

Variable Speed Drives
SUPERIOR RELIABILITY
FIVE YEAR WARRANTY
When installed by Yorkland Sponsored Johnson/Eaton Certified Installers. Available for Johnson Controls Series II drives from 5 to 50HP. (Standard is 39 months).
Features
• Best in Class energy efficiency • Active energy control algorithm to save energy and partial loads • Affordable • Easy menu set up with graphic display, keypad with set up wizard • Reduced installation costs with fast and easy installation and start up • Real time clock / calendaring • 5% DC link choke • Thin film high efficiency capacitors • Conformal coated boards
Contact us for details
www.yorkland.net • 1-877-733-3833
Toronto l Mississauga l London l Hamilton l Ottawa l Halifax
14
September/October/November 2017

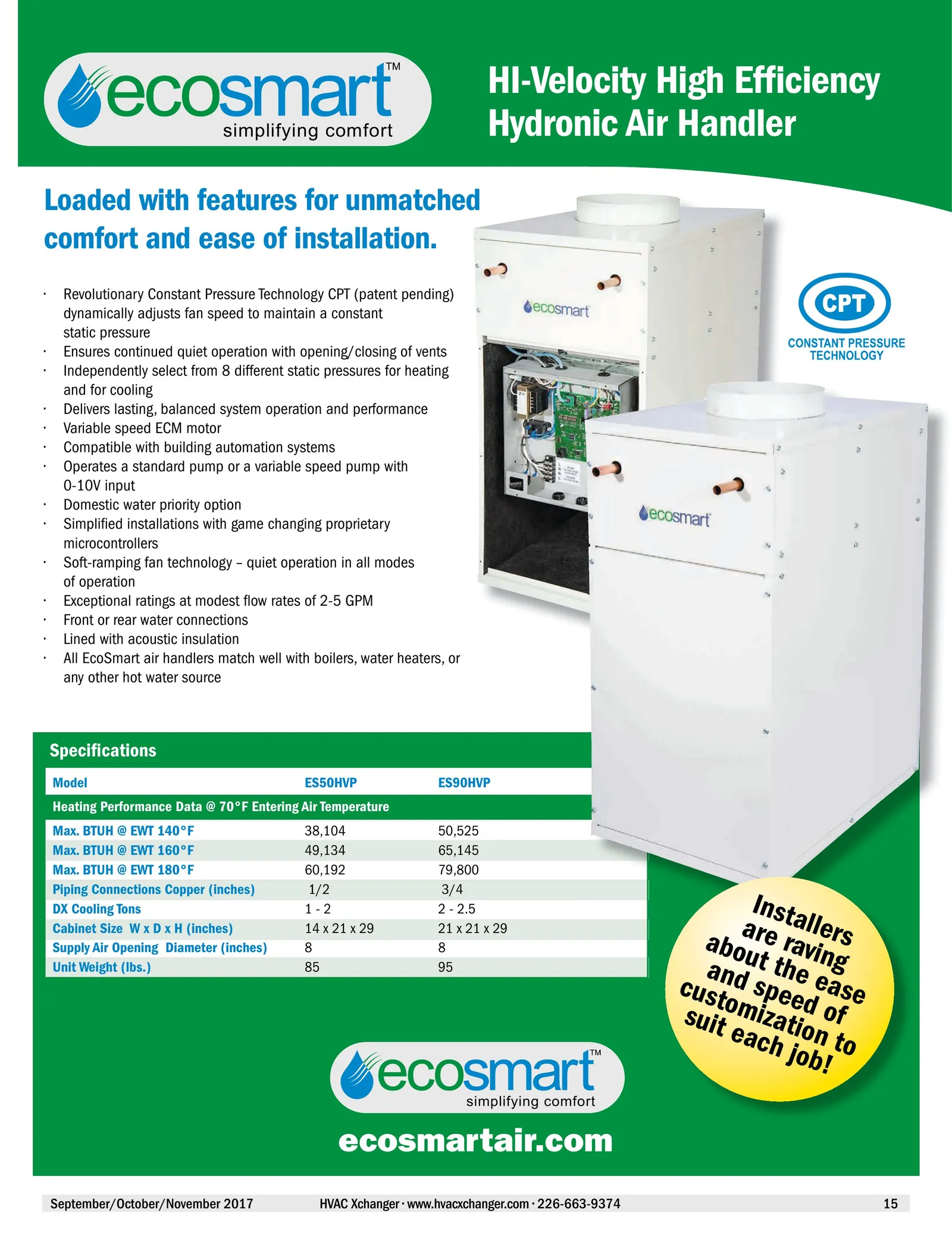

HI-Velocity High Efficiency Hydronic Air Handler
simplifying comfort
Loaded with features for unmatched comfort and ease of installation.
• •
• • • •
• •
• • • •
Revolutionary Constant Pressure Technology CPT (patent pending) dynamically adjusts fan speed to maintain a constant static pressure Ensures continued quiet operation with opening/closing of vents Independently select from 8 different static pressures for heating and for cooling Delivers lasting, balanced system operation and performance Variable speed ECM motor Compatible with building automation systems Operates a standard pump or a variable speed pump with 0-10V input Domestic water priority option Simplified installations with game changing proprietary microcontrollers Soft-ramping fan technology – quiet operation in all modes of operation Exceptional ratings at modest flow rates of 2-5 GPM Front or rear water connections Lined with acoustic insulation All EcoSmart air handlers match well with boilers, water heaters, or any other hot water source
Specifications
Model
ES50HVP
ES90HVP
Heating Performance Data @ 70°F Entering Air Temperature
Max. BTUH @ EWT 140°F Max. BTUH @ EWT 160°F Max. BTUH @ EWT 180°F Piping Connections Copper (inches) DX Cooling Tons CabinetSizeWxDxH(inches) Supply Air Opening Diameter (inches) Unit Weight (lbs.)
38,104 49,134 60,192 1/2 1 - 2 14 x 21 x 29 8 85
50,525 65,145 79,800 3/4 2 - 2.5 21 x 21 x 29 8 95
Insta ll a abou re ravi e n rs andttheeg cust spee ase suit omizati d of each on to job!
simplifying comfort
ecosmartair.com
September/October/November 2017
15
