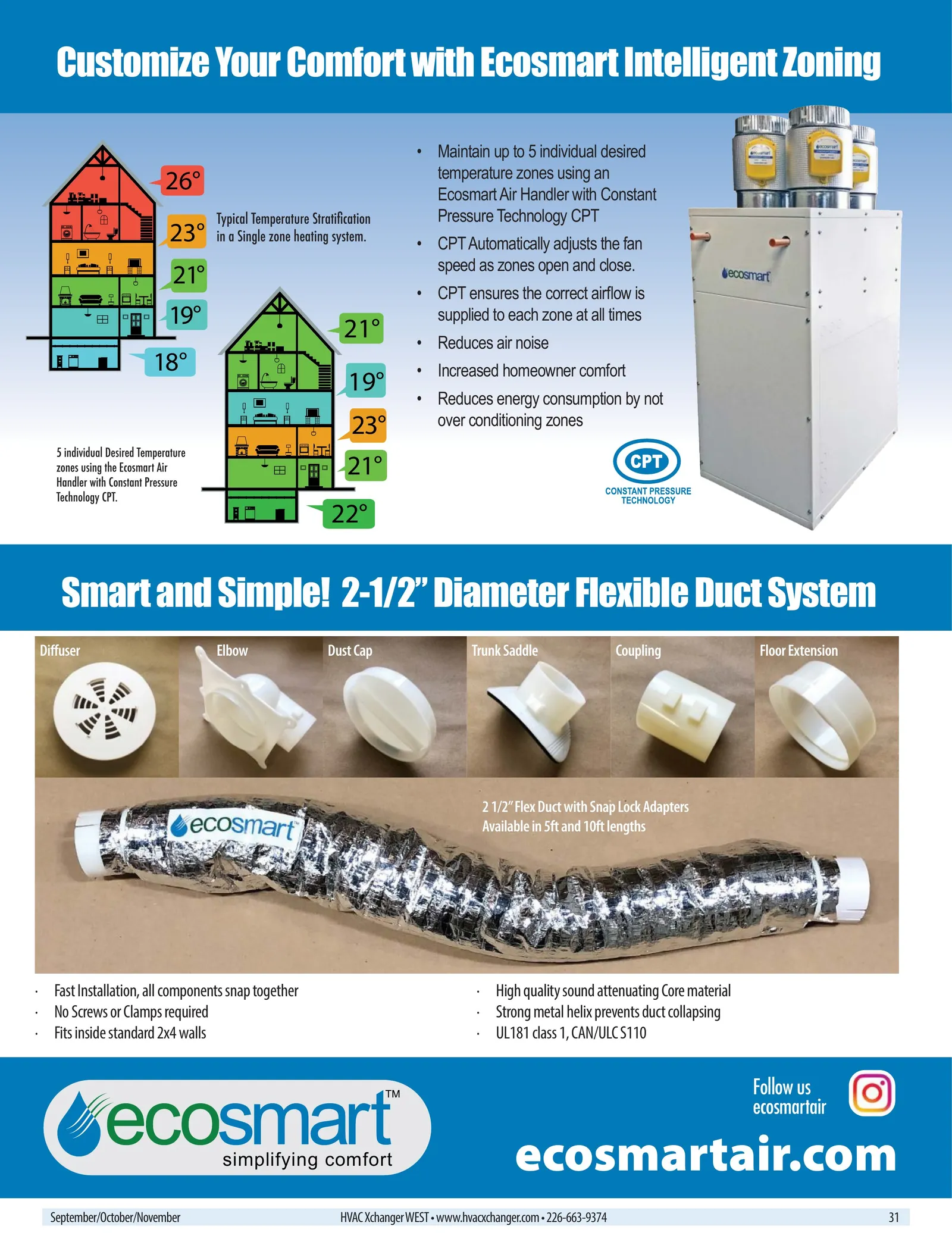

Customize Your Comfort with Ecosmart Intelligent Zoning

Typical Temperature Stratification in a Single zone heating system.

26° 23° 21° 19° 18°

5 individual Desired Temperature zones using the Ecosmart Air Handler with Constant Pressure Technology CPT.

21° 19° 23° 21° 22°

- Maintain up to 5 individual desired temperature zones using an Ecosmart Air Handler with Constant Pressure Technology CPT - CPT Automatically adjusts the fan speed as zones open and close. - CPT ensures the correct airflow is supplied to each zone at all times - Reduces air noise - Increased homeowner comfort - Reduces energy consumption by not over conditioning zones

CPT CONSTANT PRESSURE TECHNOLOGY

Smart and Simple! 2-1/2" Diameter Flexible Duct System

Diffuser

Elbow

Dust Cap

Trunk Saddle

Coupling

Floor Extension

2 1/2" Flex Duct with Snap Lock Adapters Available in 5ft and 10ft lengths

- Fast Installation, all components snap together - No Screws or Clamps required - Fits inside standard 2x4 walls - High quality sound attenuating Core material - Strong metal helix prevents duct collapsing - UL181 class 1, CAN/ULC S110

ecosmart simplifying comfort

Follow us ecosmartair

ecosmartair.com
