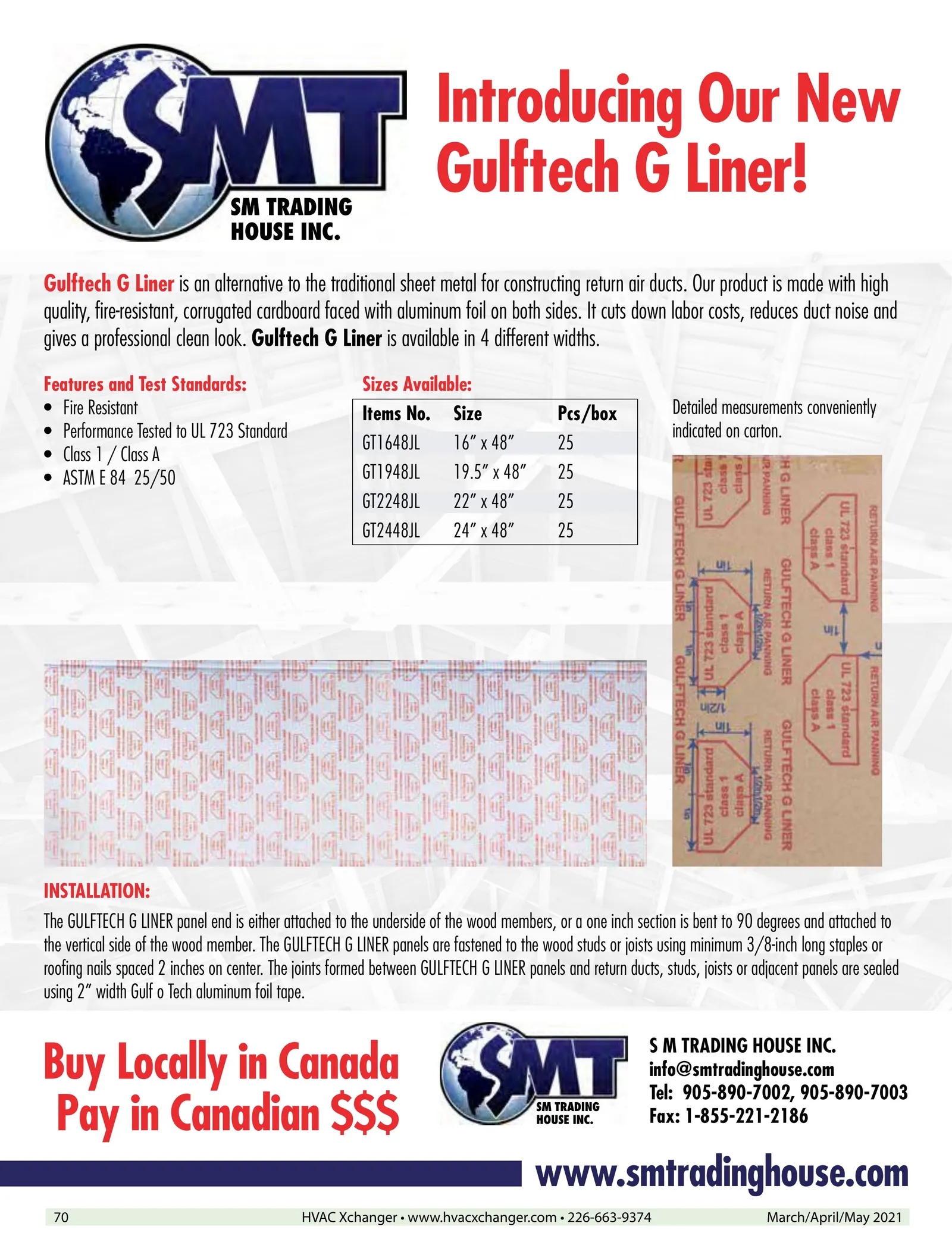

Introducing Our New Gulftech G Liner!
SM TRADING HOUSE INC.
Gulftech G Liner is an alternative to the traditional sheet metal for constructing return air ducts. Our product is made with high quality, fire-resistant, corrugated cardboard faced with aluminum foil on both sides. It cuts down labor costs, reduces duct noise and gives a professional clean look. Gulftech G Liner is available in 4 different widths.
Features and Test Standards: • Fire Resistant • Performance Tested to UL 723 Standard • Class1/ClassA • ASTM E 84 25/50
Sizes Available: Items No. Size GT1648JL 16” x 48” GT1948JL 19.5” x 48” GT2248JL 22” x 48” GT2448JL 24” x 48”
Detailed measurements conveniently indicated on carton.
Pcs/box 25 25 25 25
INSTALLATION:
The GULFTECH G LINER panel end is either attached to the underside of the wood members, or a one inch section is bent to 90 degrees and attached to the vertical side of the wood member. The GULFTECH G LINER panels are fastened to the wood studs or joists using minimum 3/8-inch long staples or roofing nails spaced 2 inches on center. The joints formed between GULFTECH G LINER panels and return ducts, studs, joists or adjacent panels are sealed using 2” width Gulf o Tech aluminum foil tape.
Buy Locally in Canada Pay in Canadian $$$
SM TRADING HOUSE INC.
S M TRADING HOUSE INC. info@smtradinghouse.com Tel: 905-890-7002, 905-890-7003 Fax: 1-855-221-2186
www.smtradinghouse.com
70
March/April/May 2021

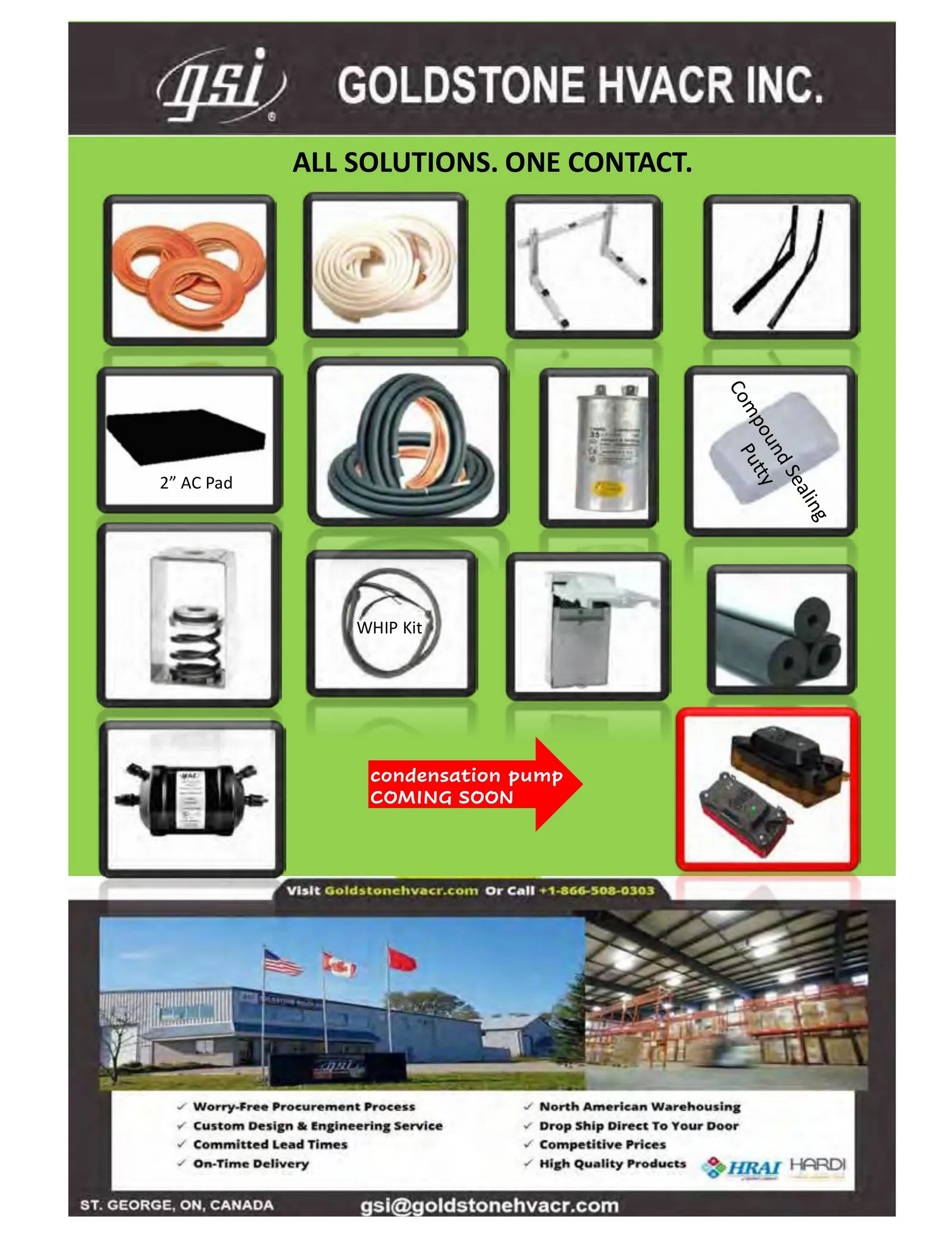

ALL SOLUTIONS. ONE CONTACT.
2” AC Pad
WHIP Kit
condensation pump COMING SOON
