HVAC Xchanger Spring 2024, Ontario Edition · Page 10Pages 10–11

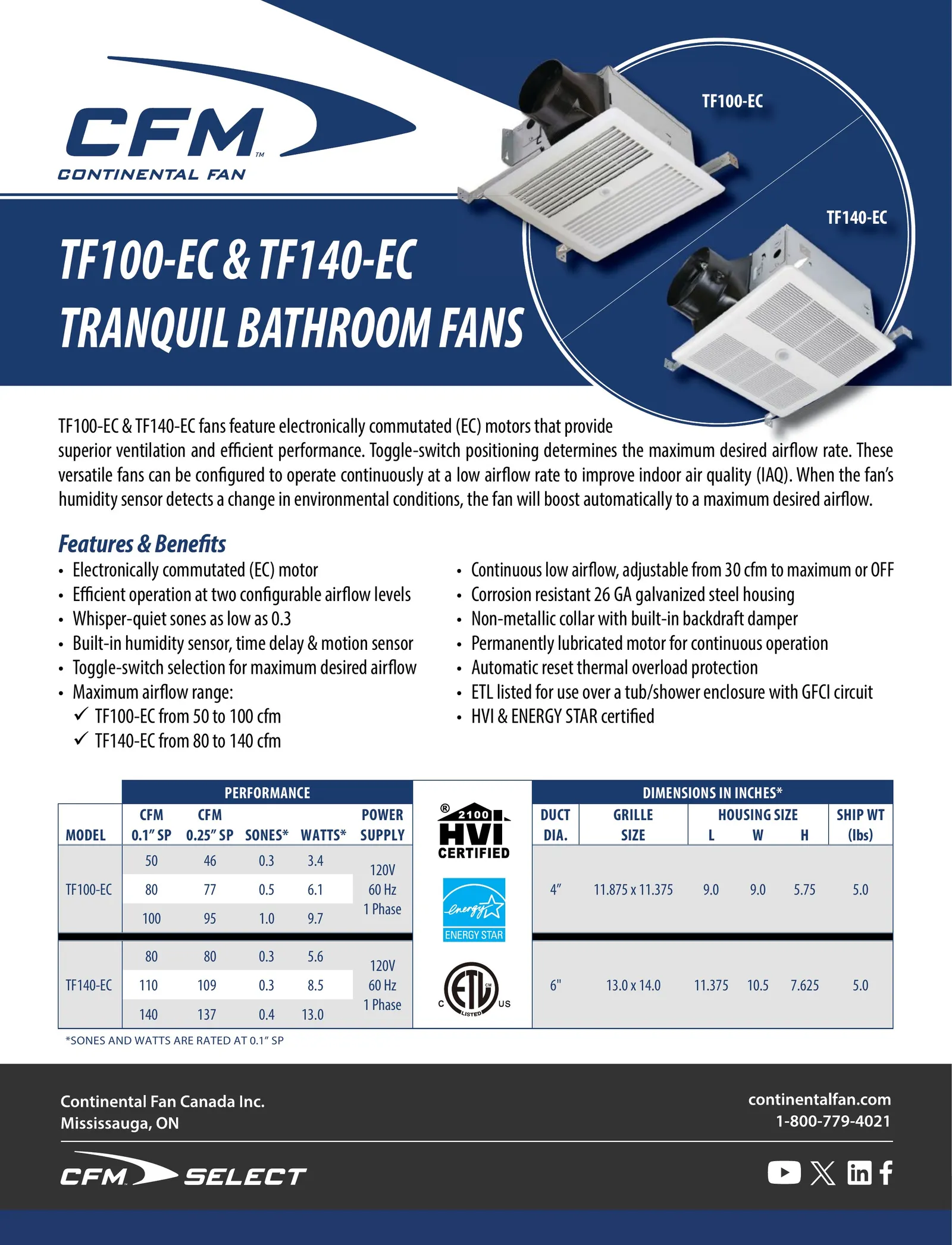

Ads: Continental Fan Canada Inc.
CFM Continental Fan
TF100-EC
TF140-EC
TF100-EC & TF140-EC TRANQUIL BATHROOM FANS
TF100-EC & TF140-EC fans feature electronically commutated (EC) motors that provide superior ventilation and efficient performance. Toggle-switch positioning determines the maximum desired airflow rate. These versatile fans can be configured to operate continuously at a low airflow rate to improve indoor air quality (IAQ). When the fan's humidity sensor detects a change in environmental conditions, the fan will boost automatically to a maximum desired airflow.
Features & Benefits • Electronically commutated (EC) motor • Efficient operation at two configurable airflow levels • Whisper-quiet sones as low as 0.3 • Built-in humidity sensor, time delay & motion sensor • Toggle-switch selection for maximum desired airflow • Maximum airflow range: ✓ TF100-EC from 50 to 100 cfm ✓ TF140-EC from 80 to 140 cfm • Continuous low airflow, adjustable from 30 cfm to maximum or OFF • Corrosion resistant 26 GA galvanized steel housing • Non-metallic collar with built-in backdraft damper • Permanently lubricated motor for continuous operation • Automatic reset thermal overload protection • ETL listed for use over a tub/shower enclosure with GFCI circuit • HVI & ENERGY STAR certified
PERFORMANCE: MODEL | CFM 0.1" SP | CFM 0.25" SP | SONES* | WATTS* | POWER SUPPLY TF100-EC: 50 | 46 | 0.3 | 3.4; 80 | 77 | 0.5 | 6.1; 100 | 95 | 1.0 | 9.7; 120V 60 Hz 1 Phase TF140-EC: 80 | 80 | 0.3 | 5.6; 110 | 109 | 0.3 | 8.5; 140 | 137 | 0.4 | 13.0; 120V 60 Hz 1 Phase
DIMENSIONS IN INCHES*: DUCT DIA. | GRILLE SIZE | HOUSING SIZE L W H | SHIP WT (lbs) TF100-EC: 4" | 11.875 x 11.375 | 9.0 9.0 5.75 | 5.0 TF140-EC: 6" | 13.0 x 14.0 | 11.375 10.5 7.625 | 5.0
*SONES AND WATTS ARE RATED AT 0.1" SP
2100 HVI CERTIFIED
ENERGY STAR
ETL LISTED C US
Continental Fan Canada Inc. Mississauga, ON
continentalfan.com 1-800-779-4021
CFM SELECT
Ads: Air Heat
MISSISSAUGA • TORONTO • SCARBOROUGH • BELLEVILLE • OTTAWA

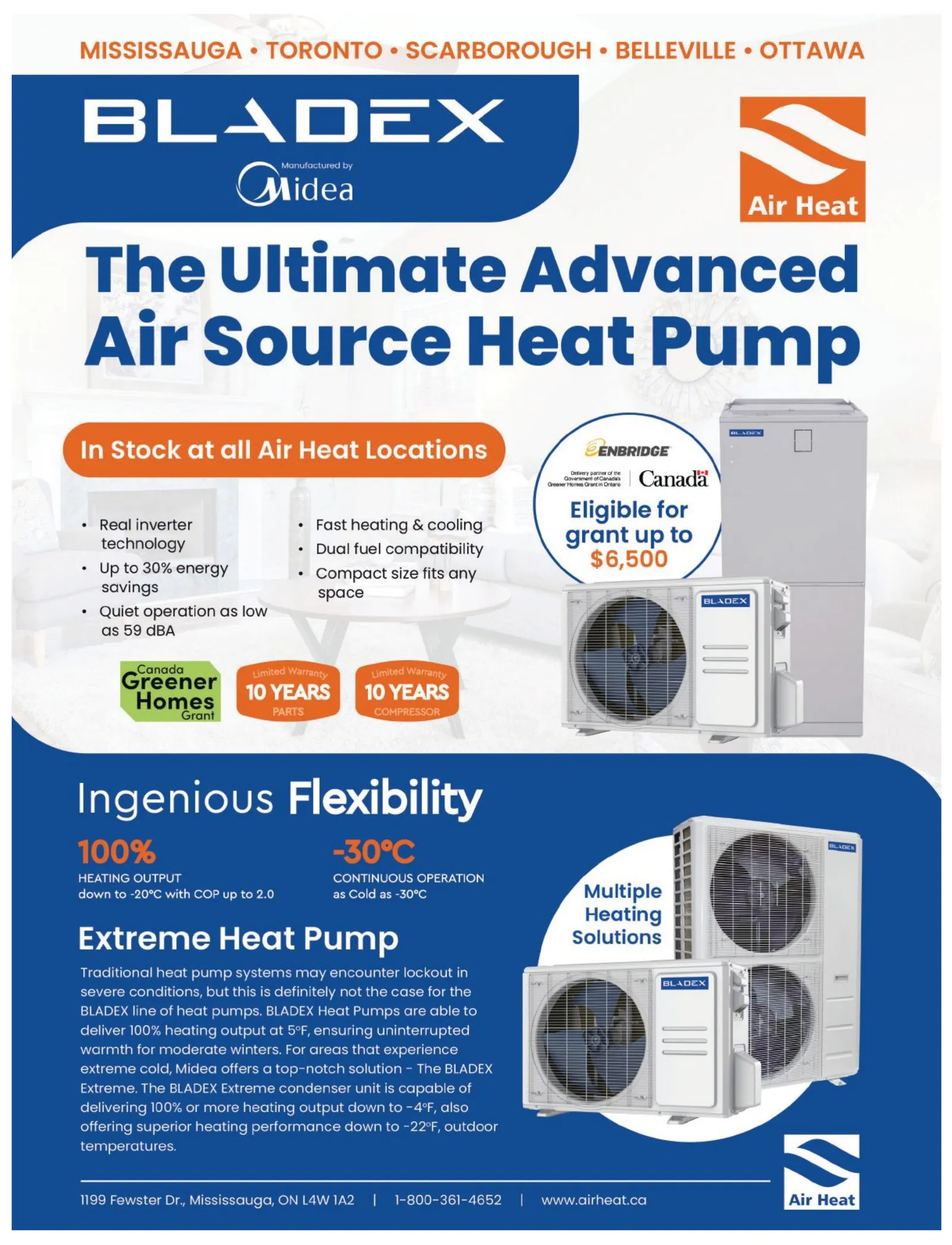

BLADEX Manufactured by Midea
Air Heat
The Ultimate Advanced Air Source Heat Pump
In Stock at all Air Heat Locations
• Real inverter technology • Up to 30% energy savings • Quiet operation as low as 59 dBA • Fast heating & cooling • Dual fuel compatibility • Compact size fits any space
ENBRIDGE Delivery partner of the Government of Canada's Greener Homes Grant in Ontario Canada Eligible for grant up to $6,500
Canada Greener Homes Grant
Limited Warranty 10 YEARS PARTS
Limited Warranty 10 YEARS COMPRESSOR
Ingenious Flexibility
100% HEATING OUTPUT down to -20°C with COP up to 2.0
-30°C CONTINUOUS OPERATION as Cold as -30°C
Multiple Heating Solutions
Extreme Heat Pump Traditional heat pump systems may encounter lockout in severe conditions, but this is definitely not the case for the BLADEX line of heat pumps. BLADEX Heat Pumps are able to deliver 100% heating output at 5°F, ensuring uninterrupted warmth for moderate winters. For areas that experience extreme cold, Midea offers a top-notch solution - The BLADEX Extreme. The BLADEX Extreme condenser unit is capable of delivering 100% or more heating output down to -4°F, also offering superior heating performance down to -22°F, outdoor temperatures.
1199 Fewster Dr., Mississauga, ON L4W 1A2 | 1-800-361-4652 | www.airheat.ca
Air Heat
