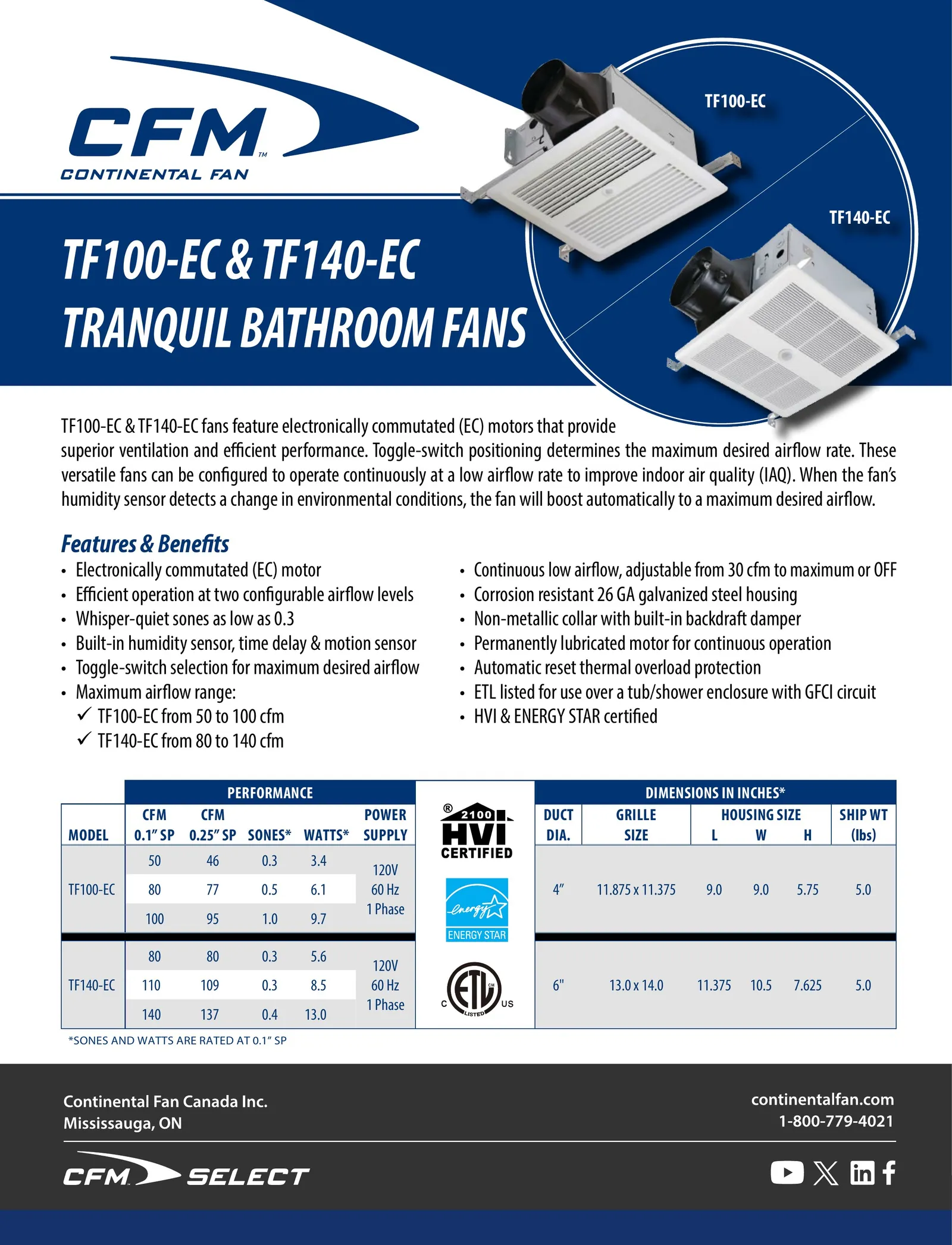

CFM TF100-EC and TF140-EC Tranquil bathroom fans

Ads: Continental Fan Canada Inc.

CFM™ CONTINENTAL FAN

TF100-EC

TF140-EC

TF100-EC & TF140-EC TRANQUIL BATHROOM FANS

TF100-EC & TF140-EC fans feature electronically commutated (EC) motors that provide superior ventilation and efficient performance. Toggle-switch positioning determines the maximum desired airflow rate. These versatile fans can be configured to operate continuously at a low airflow rate to improve indoor air quality (IAQ). When the fan's humidity sensor detects a change in environmental conditions, the fan will boost automatically to a maximum desired airflow.

Features & Benefits • Electronically commutated (EC) motor • Efficient operation at two configurable airflow levels • Whisper-quiet sones as low as 0.3 • Built-in humidity sensor, time delay & motion sensor • Toggle-switch selection for maximum desired airflow • Maximum airflow range: ✓ TF100-EC from 50 to 100 cfm ✓ TF140-EC from 80 to 140 cfm • Continuous low airflow, adjustable from 30 cfm to maximum or OFF • Corrosion resistant 26 GA galvanized steel housing • Non-metallic collar with built-in backdraft damper • Permanently lubricated motor for continuous operation • Automatic reset thermal overload protection • ETL listed for use over a tub/shower enclosure with GFCI circuit • HVI & ENERGY STAR certified

PERFORMANCE: MODEL | CFM 0.1" SP | CFM 0.25" SP | SONES* | WATTS* | POWER SUPPLY TF100-EC | 50 | 46 | 0.3 | 3.4 | 120V 60 Hz 1 Phase TF100-EC | 80 | 77 | 0.5 | 6.1 TF100-EC | 100 | 95 | 1.0 | 9.7 TF140-EC | 80 | 80 | 0.3 | 5.6 | 120V 60 Hz 1 Phase TF140-EC | 110 | 109 | 0.3 | 8.5 TF140-EC | 140 | 137 | 0.4 | 13.0

DIMENSIONS IN INCHES*: DUCT DIA. | GRILLE SIZE | HOUSING SIZE L W H | SHIP WT (lbs) TF100-EC | 4" | 11.875 x 11.375 | 9.0 9.0 5.75 | 5.0 TF140-EC | 6" | 13.0 x 14.0 | 11.375 10.5 7.625 | 5.0

2100 HVI CERTIFIED

ENERGY STAR

c ETL us LISTED

*SONES AND WATTS ARE RATED AT 0.1" SP
