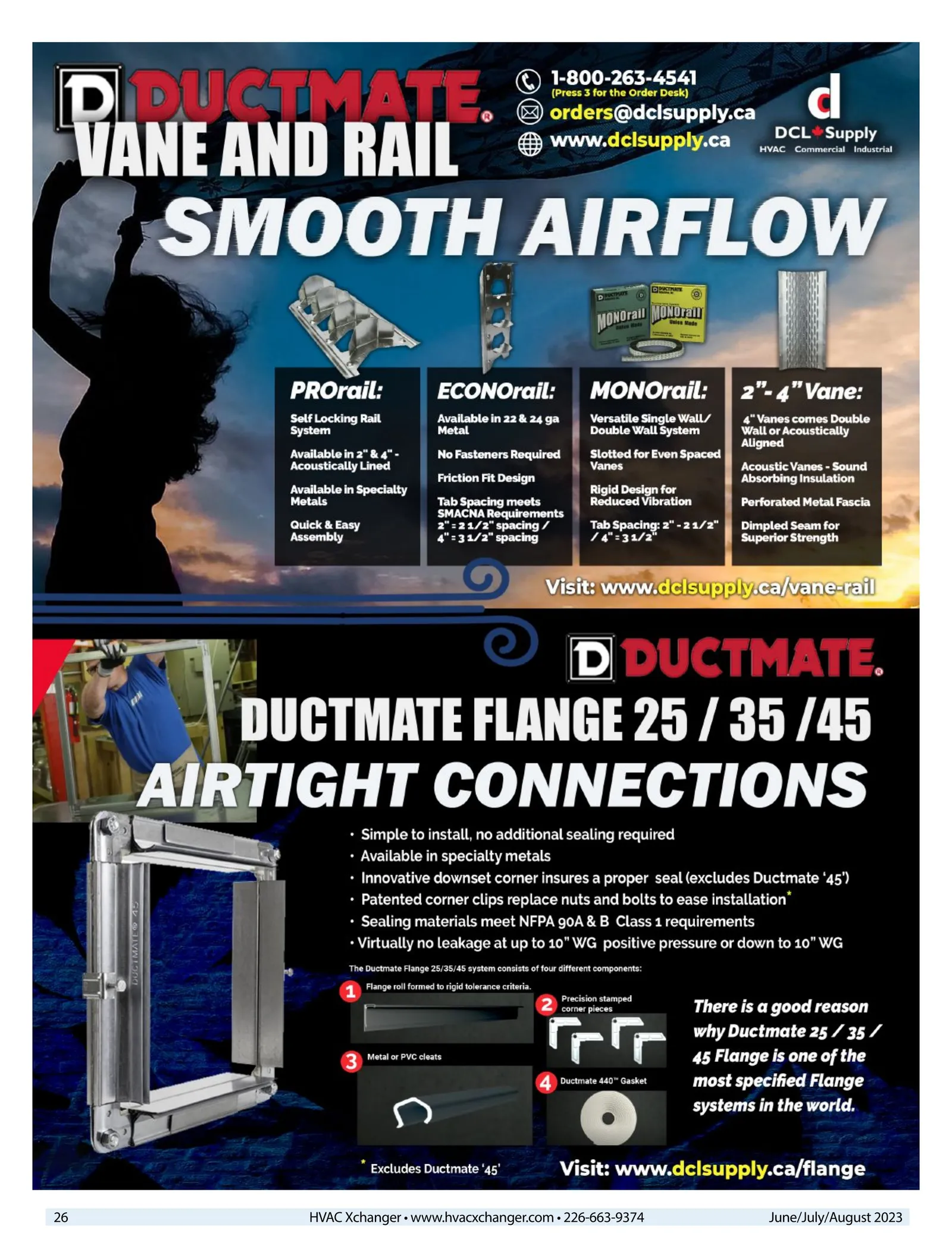

Ads: DCL Supply
DUCTMATE VANE AND RAIL
1-800-263-4541 (Press 3 for the Order Desk) orders@dclsupply.ca www.dclsupply.ca
DCL Supply HVAC Commercial Industrial
SMOOTH AIRFLOW
MONOrail Union Made
PROrail: Self Locking Rail System. Available in 2" & 4" - Acoustically Lined. Available in Specialty Metals. Quick & Easy Assembly
ECONOrail: Available in 22 & 24 ga Metal. No Fasteners Required. Friction Fit Design. Tab Spacing meets SMACNA Requirements 2" = 2 1/2" spacing / 4" = 3 1/2" spacing
MONOrail: Versatile Single Wall/ Double Wall System. Slotted for Even Spaced Vanes. Rigid Design for Reduced Vibration. Tab Spacing: 2" - 2 1/2" / 4" = 3 1/2"
2"- 4" Vane: 4" Vanes comes Double Wall or Acoustically Aligned. Acoustic Vanes - Sound Absorbing Insulation. Perforated Metal Fascia. Dimpled Seam for Superior Strength
Visit: www.dclsupply.ca/vane-rail
DUCTMATE
DUCTMATE FLANGE 25 / 35 /45
AIRTIGHT CONNECTIONS
• Simple to install, no additional sealing required • Available in specialty metals • Innovative downset corner insures a proper seal (excludes Ductmate '45') • Patented corner clips replace nuts and bolts to ease installation* • Sealing materials meet NFPA 90A & B Class 1 requirements • Virtually no leakage at up to 10" WG positive pressure or down to 10" WG
The Ductmate Flange 25/35/45 system consists of four different components:
1 Flange roll formed to rigid tolerance criteria. 2 Precision stamped corner pieces 3 Metal or PVC cleats 4 Ductmate 440™ Gasket
There is a good reason why Ductmate 25 / 35 / 45 Flange is one of the most specified Flange systems in the world.
* Excludes Ductmate '45'
Visit: www.dclsupply.ca/flange

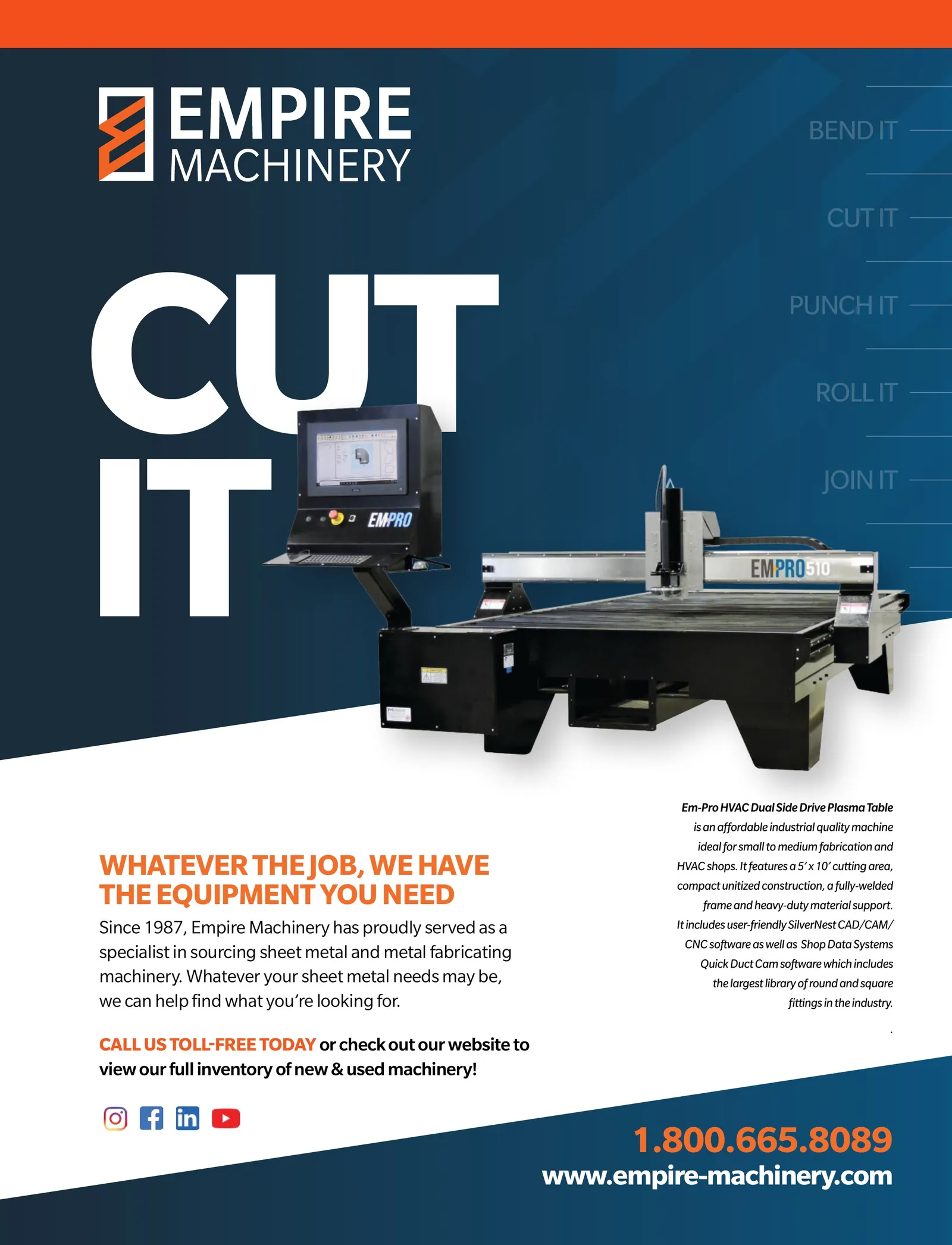

Ads: Empire Machinery
EMPIRE MACHINERY
CUT IT
BEND IT
CUT IT
PUNCH IT
ROLL IT
JOIN IT
Em-Pro HVAC Dual Side Drive Plasma Table is an affordable industrial quality machine ideal for small to medium fabrication and HVAC shops. It features a 5' x 10' cutting area, compact unitized construction, a fully-welded frame and heavy-duty material support. It includes user-friendly SilverNest CAD/CAM/CNC software as well as Shop Data Systems Quick Duct Cam software which includes the largest library of round and square fittings in the industry.
WHATEVER THE JOB, WE HAVE THE EQUIPMENT YOU NEED
Since 1987, Empire Machinery has proudly served as a specialist in sourcing sheet metal and metal fabricating machinery. Whatever your sheet metal needs may be, we can help find what you're looking for.
CALL US TOLL-FREE TODAY or check out our website to view our full inventory of new & used machinery!
1.800.665.8089 www.empire-machinery.com
