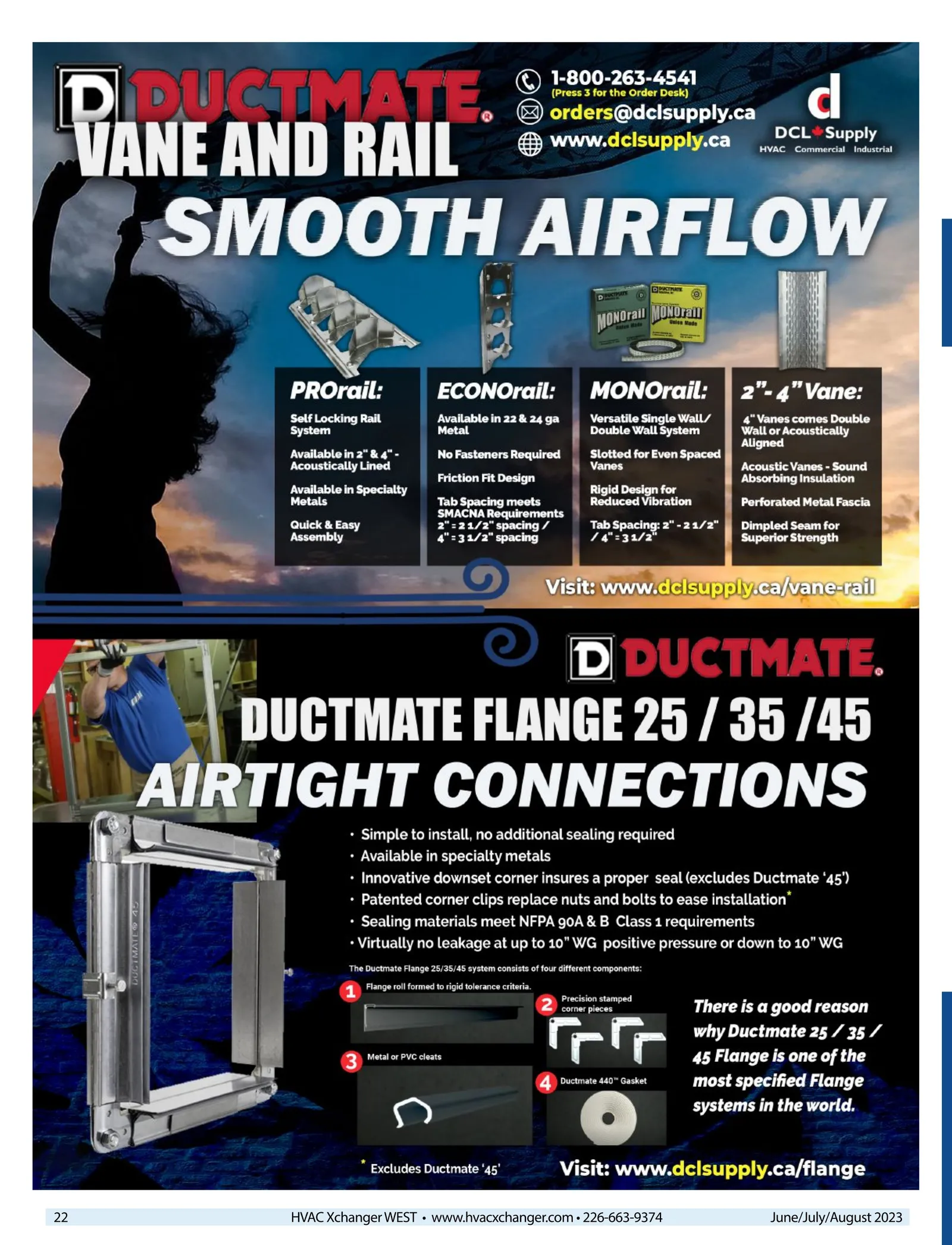

DUCTMATE® VANE AND RAIL

1-800-263-4541 (Press 3 for the Order Desk) orders@dclsupply.ca www.dclsupply.ca

DCL Supply HVAC Commercial Industrial

SMOOTH AIRFLOW

PROrail: Self Locking Rail System. Available in 2" & 4" - Acoustically Lined. Available in Specialty Metals. Quick & Easy Assembly

ECONOrail: Available in 22 & 24 ga Metal. No Fasteners Required. Friction Fit Design. Tab Spacing meets SMACNA Requirements 2" = 2 1/2" spacing / 4" = 3 1/2" spacing

MONOrail: Versatile Single Wall/Double Wall System. Slotted for Even Spaced Vanes. Rigid Design for Reduced Vibration. Tab Spacing: 2" - 2 1/2" / 4" = 3 1/2"

2"- 4" Vane: 4" Vanes comes Double Wall or Acoustically Aligned. Acoustic Vanes - Sound Absorbing Insulation. Perforated Metal Fascia. Dimpled Seam for Superior Strength

Visit: www.dclsupply.ca/vane-rail

DUCTMATE®

DUCTMATE FLANGE 25 / 35 /45

AIRTIGHT CONNECTIONS

• Simple to install, no additional sealing required • Available in specialty metals • Innovative downset corner insures a proper seal (excludes Ductmate '45') • Patented corner clips replace nuts and bolts to ease installation* • Sealing materials meet NFPA 90A & B Class 1 requirements • Virtually no leakage at up to 10" WG positive pressure or down to 10" WG

The Ductmate Flange 25/35/45 system consists of four different components: 1 Flange roll formed to rigid tolerance criteria. 2 Precision stamped corner pieces 3 Metal or PVC cleats 4 Ductmate 440™ Gasket

There is a good reason why Ductmate 25 / 35 / 45 Flange is one of the most specified Flange systems in the world.

* Excludes Ductmate '45'

Visit: www.dclsupply.ca/flange
