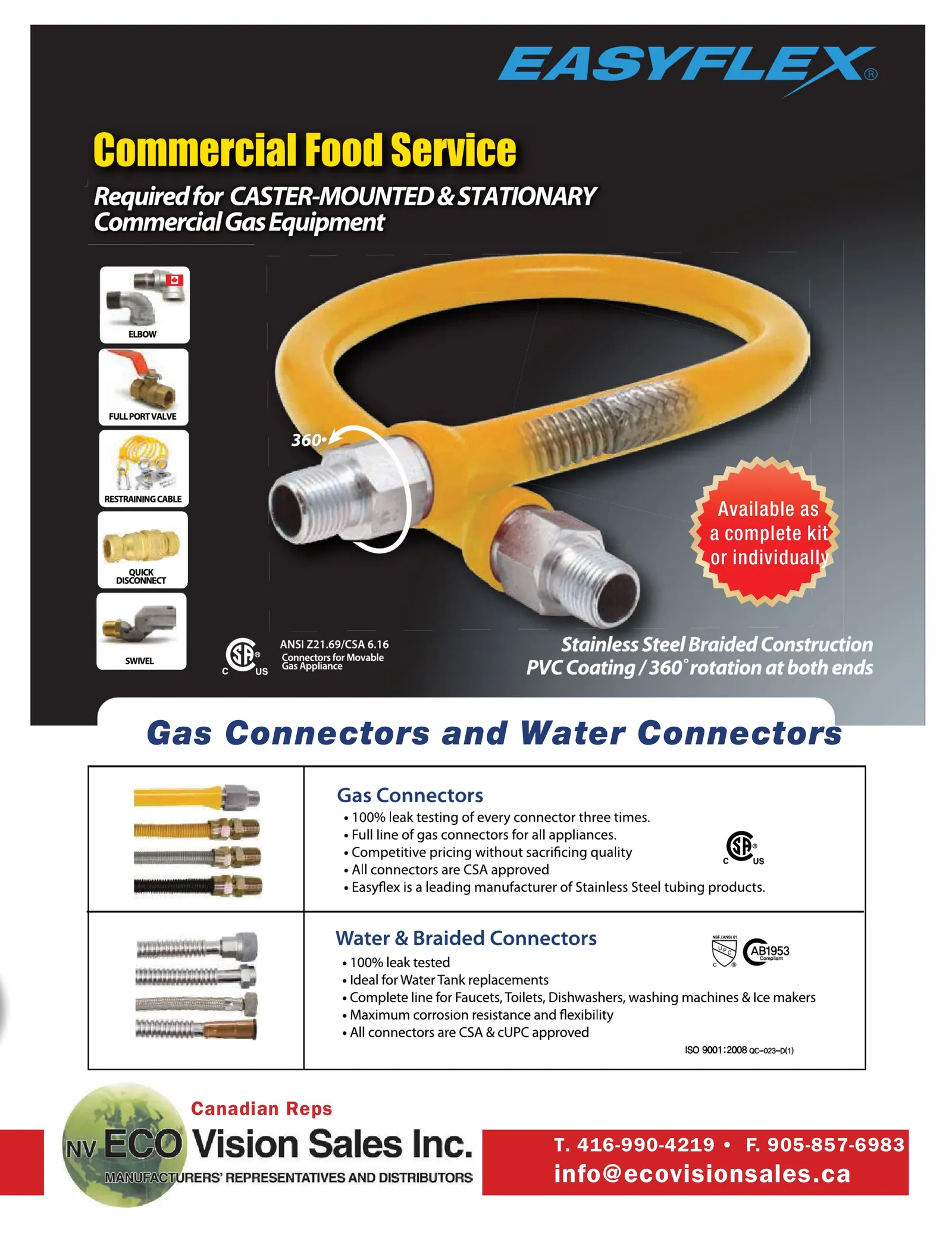

Gas Connectors and Water Connectors

W E N

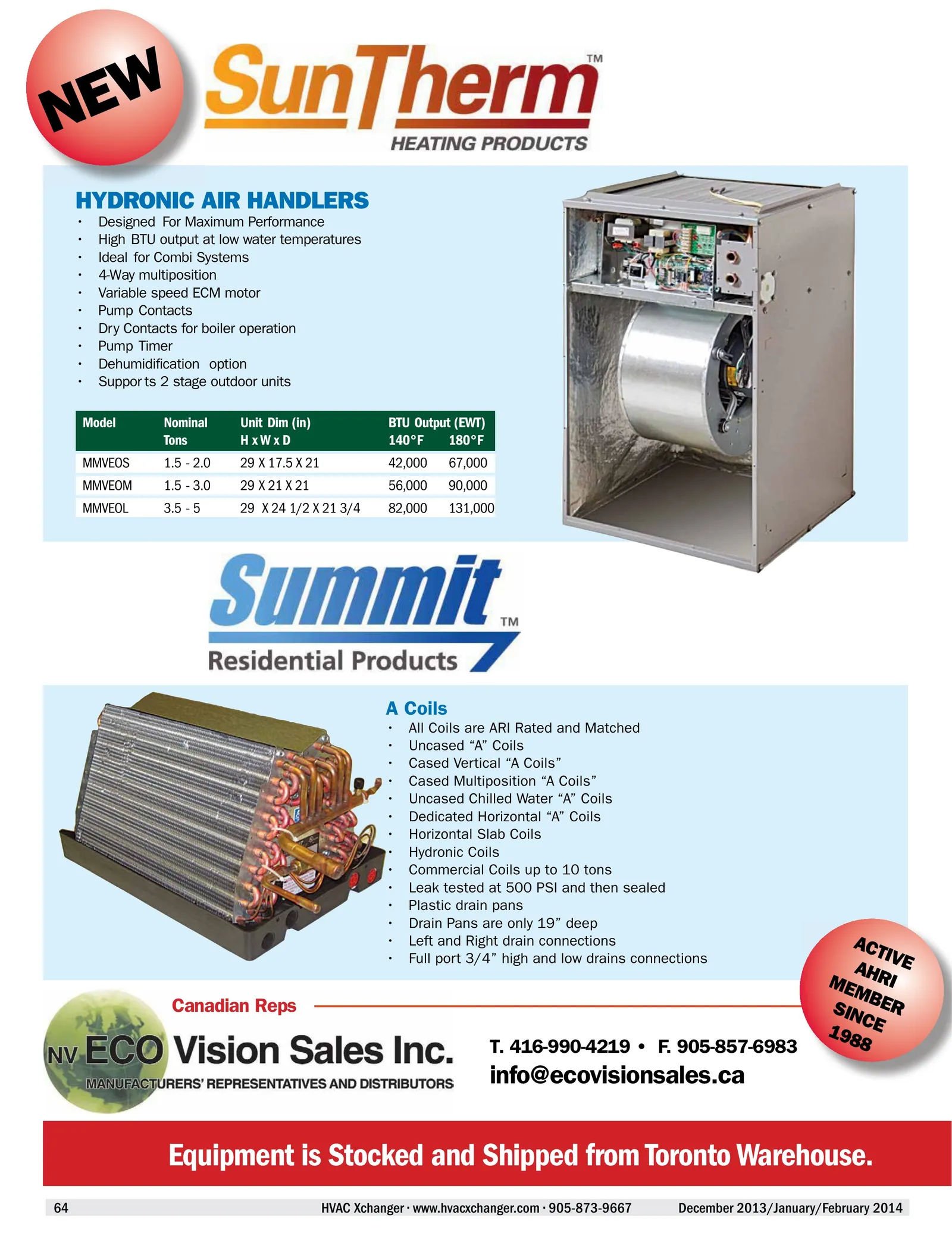

HYDRONIC AIR HANDLERS

• • • • • • • • • •

Designed For Maximum Performance High BTU output at low water temperatures Ideal for Combi Systems 4-Way multiposition Variable speed ECM motor Pump Contacts Dry Contacts for boiler operation Pump Timer Dehumidification option Suppor ts 2 stage outdoor units

Model

Nominal Tons

Unit Dim (in) HxWxD

BTU Output (EWT) 140°F 180°F

MMVEOS

1.5 - 2.0

29 X 17.5 X 21

42,000

67,000

MMVEOM

1.5 - 3.0

29 X 21 X 21

56,000

90,000

MMVEOL

3.5 - 5

29 X 24 1/2 X 21 3/4

82,000

131,000

A Coils

• • • • • • • • • • • • • •

All Coils are ARI Rated and Matched Uncased “A” Coils Cased Vertical “A Coils” Cased Multiposition “A Coils” Uncased Chilled Water “A” Coils Dedicated Horizontal “A” Coils Horizontal Slab Coils Hydronic Coils Commercial Coils up to 10 tons Leak tested at 500 PSI and then sealed Plastic drain pans Drain Pans are only 19” deep Left and Right drain connections Full port 3/4” high and low drains connections

Canadian Reps

T. 416-990-4219 • F. 905-857-6983

ACT IV AHR E I ME MB E R SIN CE 198 8

info@ecovisionsales.ca

Equipment is Stocked and Shipped from Toronto Warehouse.
