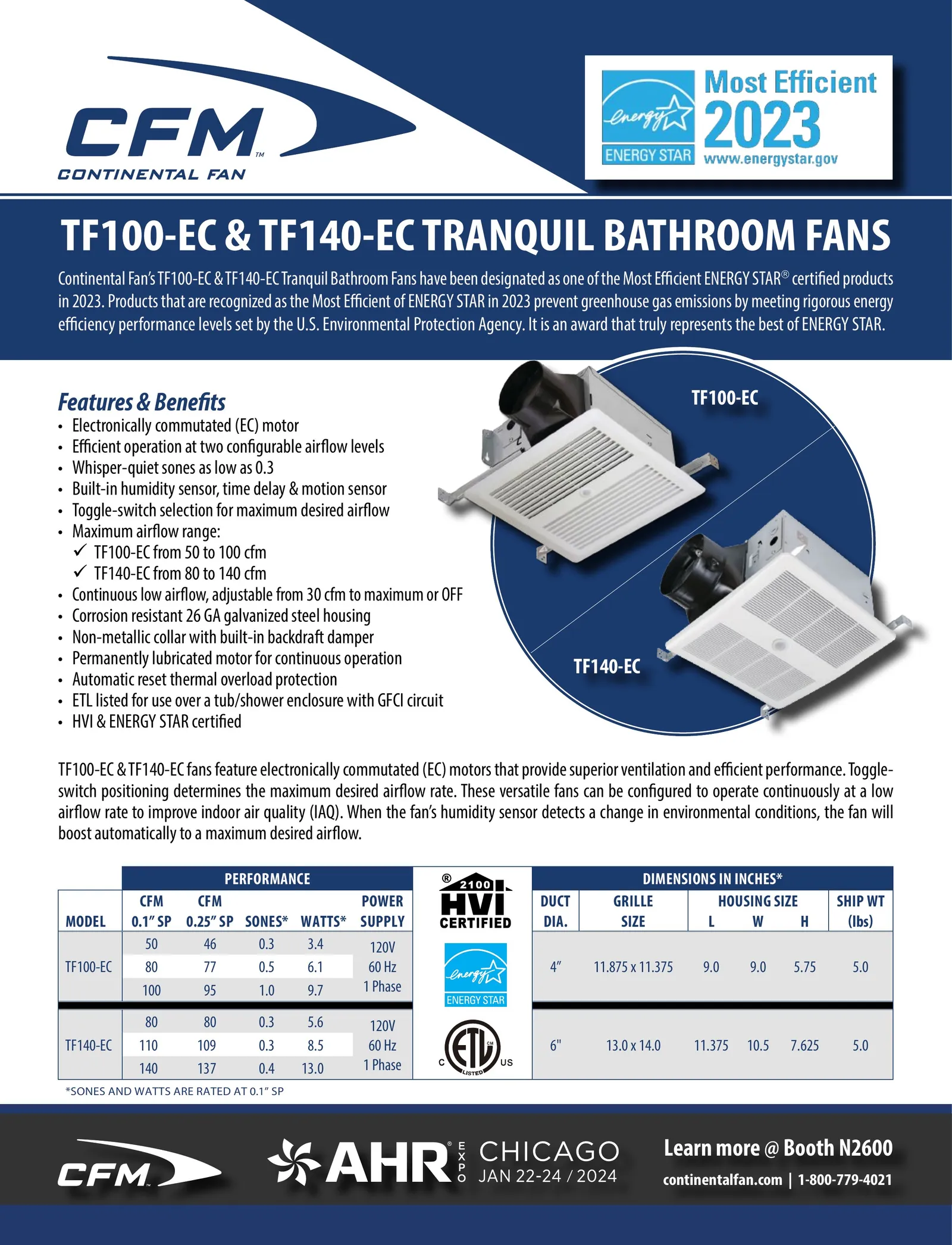

Ads: Continental Fan Canada Inc.
CFM Continental Fan
ENERGY STAR Most Efficient 2023 www.energystar.gov
TF100-EC & TF140-EC TRANQUIL BATHROOM FANS
Continental Fan's TF100-EC & TF140-EC Tranquil Bathroom Fans have been designated as one of the Most Efficient ENERGY STAR® certified products in 2023. Products that are recognized as the Most Efficient of ENERGY STAR in 2023 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency. It is an award that truly represents the best of ENERGY STAR.
Features & Benefits • Electronically commutated (EC) motor • Efficient operation at two configurable airflow levels • Whisper-quiet sones as low as 0.3 • Built-in humidity sensor, time delay & motion sensor • Toggle-switch selection for maximum desired airflow • Maximum airflow range: ✓ TF100-EC from 50 to 100 cfm ✓ TF140-EC from 80 to 140 cfm • Continuous low airflow, adjustable from 30 cfm to maximum or OFF • Corrosion resistant 26 GA galvanized steel housing • Non-metallic collar with built-in backdraft damper • Permanently lubricated motor for continuous operation • Automatic reset thermal overload protection • ETL listed for use over a tub/shower enclosure with GFCI circuit • HVI & ENERGY STAR certified
TF100-EC
TF140-EC
TF100-EC & TF140-EC fans feature electronically commutated (EC) motors that provide superior ventilation and efficient performance. Toggle-switch positioning determines the maximum desired airflow rate. These versatile fans can be configured to operate continuously at a low airflow rate to improve indoor air quality (IAQ). When the fan's humidity sensor detects a change in environmental conditions, the fan will boost automatically to a maximum desired airflow.
PERFORMANCE: MODEL | CFM 0.1" SP | CFM 0.25" SP | SONES* | WATTS* | POWER SUPPLY TF100-EC | 50 | 46 | 0.3 | 3.4 | 120V 60 Hz 1 Phase TF100-EC | 80 | 77 | 0.5 | 6.1 TF100-EC | 100 | 95 | 1.0 | 9.7 TF140-EC | 80 | 80 | 0.3 | 5.6 | 120V 60 Hz 1 Phase TF140-EC | 110 | 109 | 0.3 | 8.5 TF140-EC | 140 | 137 | 0.4 | 13.0
HVI 2100 Certified. ENERGY STAR. ETL Listed C US
DIMENSIONS IN INCHES*: DUCT DIA. | GRILLE SIZE | HOUSING SIZE L W H | SHIP WT (lbs) TF100-EC | 4" | 11.875 x 11.375 | 9.0 | 9.0 | 5.75 | 5.0 TF140-EC | 6" | 13.0 x 14.0 | 11.375 | 10.5 | 7.625 | 5.0
*SONES AND WATTS ARE RATED AT 0.1" SP
CFM
AHR Expo Chicago Jan 22-24 / 2024
Learn more @ Booth N2600
continentalfan.com | 1-800-779-4021

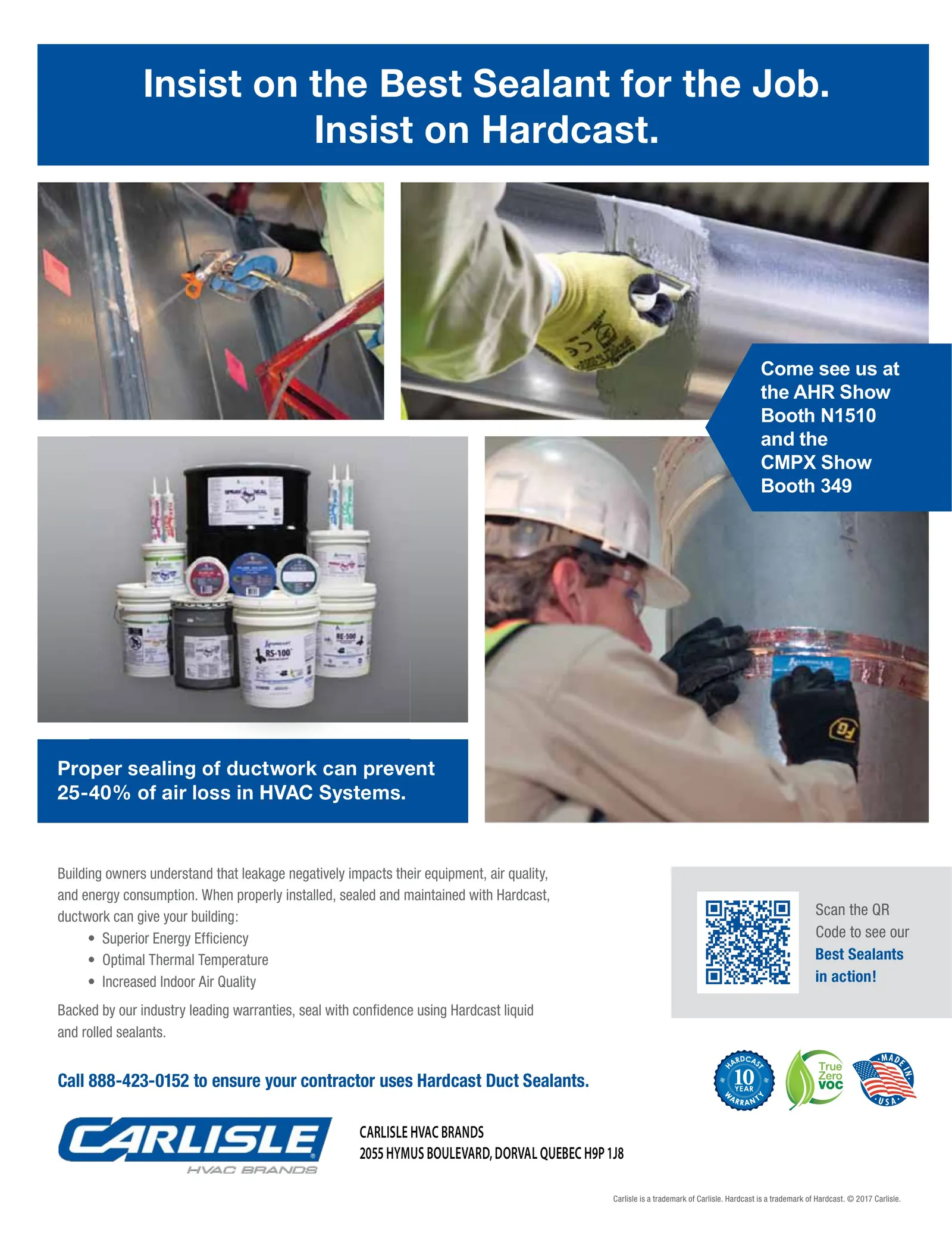

Ads: Carlisle HVAC Brands
Insist on the Best Sealant for the Job. Insist on Hardcast.
Come see us at the AHR Show Booth N1510 and the CMPX Show Booth 349
Proper sealing of ductwork can prevent 25-40% of air loss in HVAC Systems.
Building owners understand that leakage negatively impacts their equipment, air quality, and energy consumption. When properly installed, sealed and maintained with Hardcast, ductwork can give your building: • Superior Energy Efficiency • Optimal Thermal Temperature • Increased Indoor Air Quality
Backed by our industry leading warranties, seal with confidence using Hardcast liquid and rolled sealants.
Scan the QR Code to see our Best Sealants in action!
Hardcast 10 Year Warranty
True Zero VOC
Made in USA
Call 888-423-0152 to ensure your contractor uses Hardcast Duct Sealants.
Carlisle HVAC Brands
CARLISLE HVAC BRANDS 2055 HYMUS BOULEVARD, DORVAL QUEBEC H9P 1J8
Carlisle is a trademark of Carlisle. Hardcast is a trademark of Hardcast. © 2017 Carlisle.
