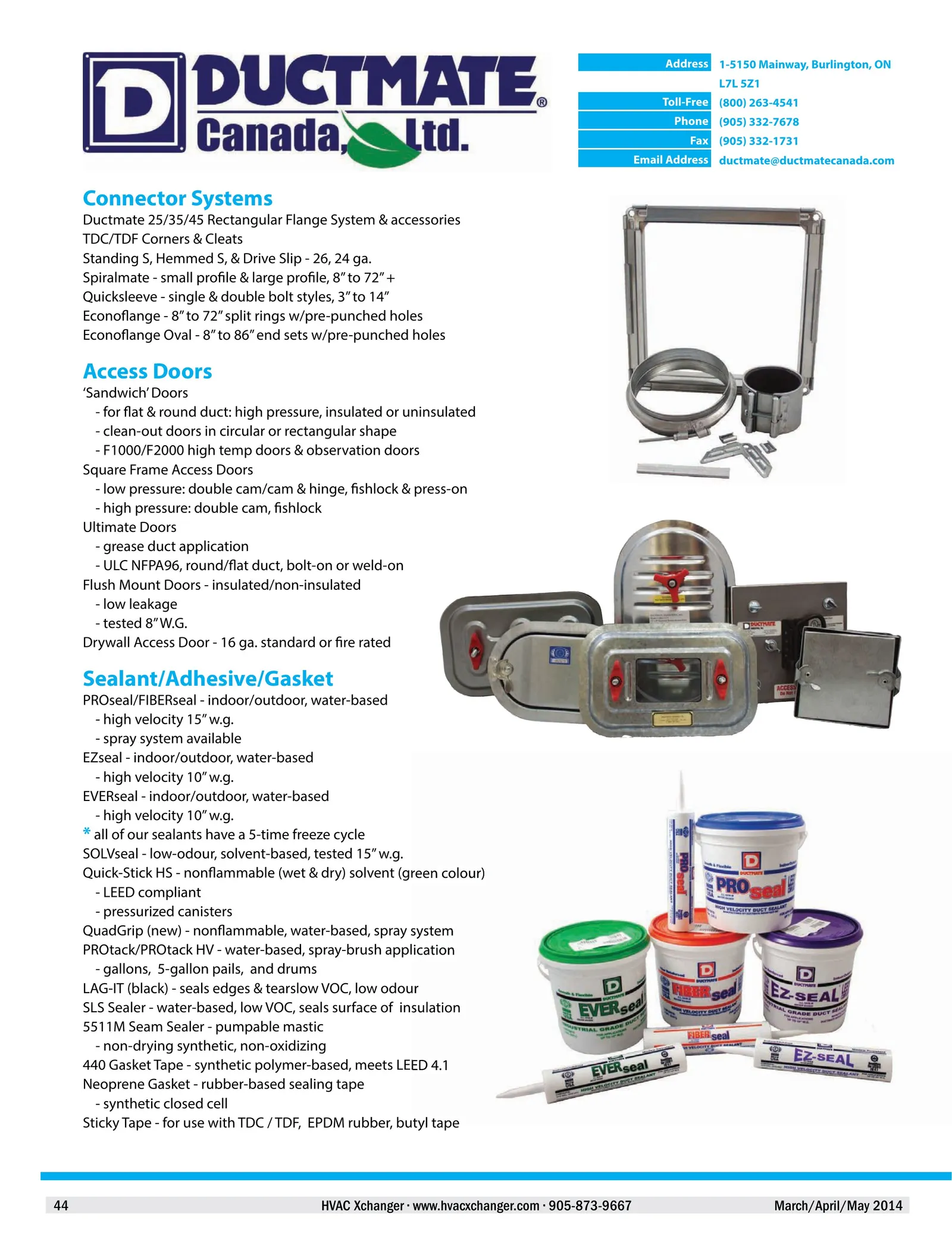

Address 1-5150 Mainway, Burlington, ON
L7L 5Z1
Toll-Free (800) 263-4541
Phone (905) 332-7678
Fax (905) 332-1731
Email Address ductmate@ductmatecanada.com
Connector Systems
Ductmate 25/35/45 Rectangular Flange System & accessories TDC/TDF Corners & Cleats Standing S, Hemmed S, & Drive Slip - 26, 24 ga. Spiralmate - small profile & large profile, 8” to 72” + Quicksleeve - single & double bolt styles, 3” to 14” Econoflange - 8” to 72” split rings w/pre-punched holes Econoflange Oval - 8” to 86” end sets w/pre-punched holes
Access Doors
‘Sandwich’ Doors - for flat & round duct: high pressure, insulated or uninsulated - clean-out doors in circular or rectangular shape - F1000/F2000 high temp doors & observation doors Square Frame Access Doors - low pressure: double cam/cam & hinge, fishlock & press-on - high pressure: double cam, fishlock Ultimate Doors - grease duct application - ULC NFPA96, round/flat duct, bolt-on or weld-on Flush Mount Doors - insulated/non-insulated - low leakage - tested 8” W.G. Drywall Access Door - 16 ga. standard or fire rated
Sealant/Adhesive/Gasket
PROseal/FIBERseal - indoor/outdoor, water-based - high velocity 15” w.g. - spray system available EZseal - indoor/outdoor, water-based - high velocity 10” w.g. EVERseal - indoor/outdoor, water-based - high velocity 10” w.g. * all of our sealants have a 5-time freeze cycle SOLVseal - low-odour, solvent-based, tested 15” w.g. Quick-Stick HS - nonflammable (wet & dry) solvent (green colour) - LEED compliant - pressurized canisters QuadGrip (new) - nonflammable, water-based, spray system PROtack/PROtack HV - water-based, spray-brush application - gallons, 5-gallon pails, and drums LAG-IT (black) - seals edges & tearslow VOC, low odour SLS Sealer - water-based, low VOC, seals surface of insulation 5511M Seam Sealer - pumpable mastic - non-drying synthetic, non-oxidizing 440 Gasket Tape - synthetic polymer-based, meets LEED 4.1 Neoprene Gasket - rubber-based sealing tape - synthetic closed cell Sticky Tape - for use with TDC / TDF, EPDM rubber, butyl tape
44
March/April/May 2014

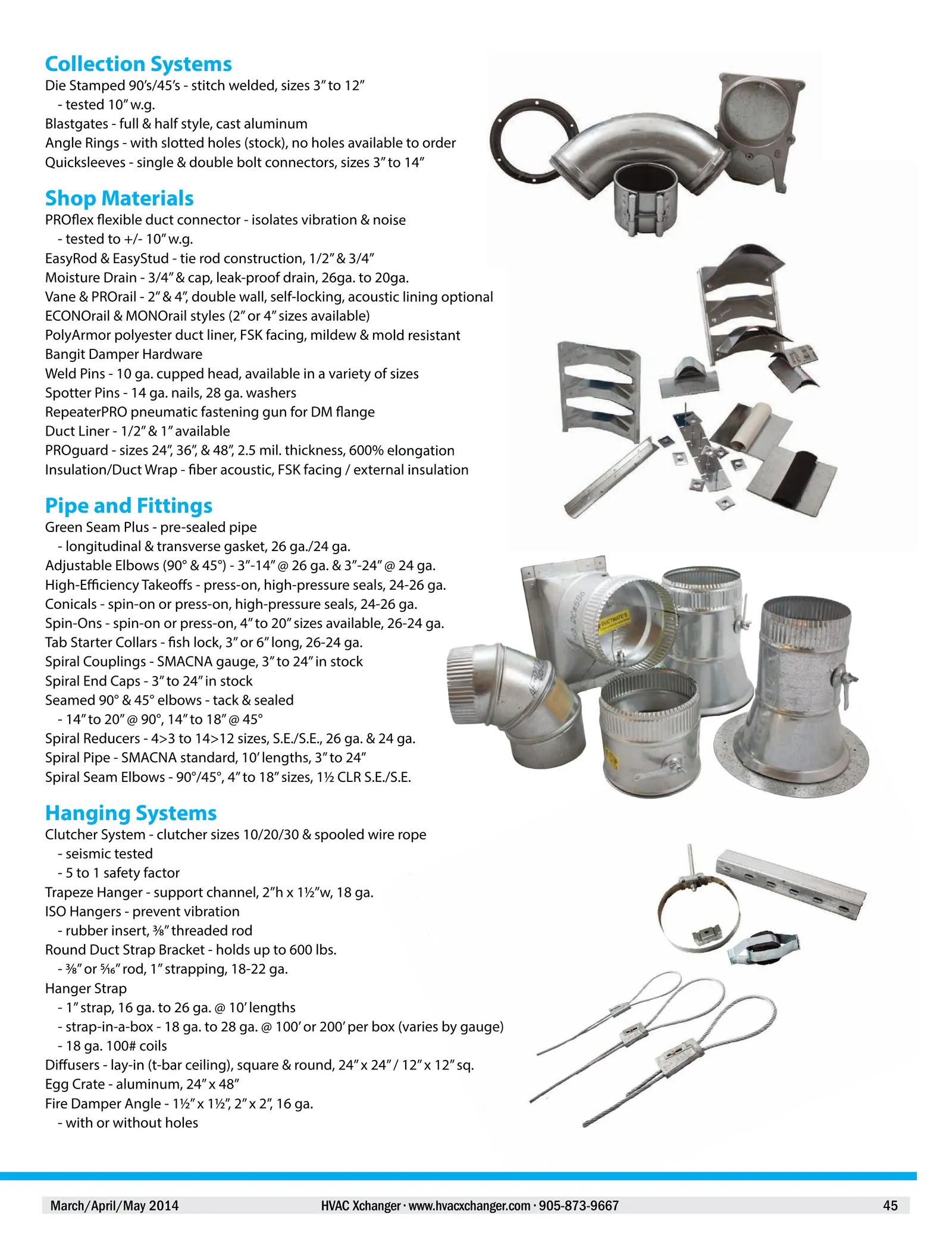

Collection Systems
Die Stamped 90’s/45’s - stitch welded, sizes 3” to 12” - tested 10” w.g. Blastgates - full & half style, cast aluminum Angle Rings - with slotted holes (stock), no holes available to order Quicksleeves - single & double bolt connectors, sizes 3” to 14”
Shop Materials
PROflex flexible duct connector - isolates vibration & noise - tested to +/- 10” w.g. EasyRod & EasyStud - tie rod construction, 1/2” & 3/4” Moisture Drain - 3/4” & cap, leak-proof drain, 26ga. to 20ga. Vane & PROrail - 2” & 4”, double wall, self-locking, acoustic lining optional ECONOrail & MONOrail styles (2” or 4” sizes available) PolyArmor polyester duct liner, FSK facing, mildew & mold resistant Bangit Damper Hardware Weld Pins - 10 ga. cupped head, available in a variety of sizes Spotter Pins - 14 ga. nails, 28 ga. washers RepeaterPRO pneumatic fastening gun for DM flange Duct Liner - 1/2” & 1” available PROguard - sizes 24”, 36”, & 48”, 2.5 mil. thickness, 600% elongation Insulation/Duct Wrap - fiber acoustic, FSK facing / external insulation
Pipe and Fittings
Green Seam Plus - pre-sealed pipe - longitudinal & transverse gasket, 26 ga./24 ga. Adjustable Elbows (90° & 45°) - 3”-14” @ 26 ga. & 3”-24” @ 24 ga. High-Efficiency Takeoffs - press-on, high-pressure seals, 24-26 ga. Conicals - spin-on or press-on, high-pressure seals, 24-26 ga. Spin-Ons - spin-on or press-on, 4” to 20” sizes available, 26-24 ga. Tab Starter Collars - fish lock, 3” or 6” long, 26-24 ga. Spiral Couplings - SMACNA gauge, 3” to 24” in stock Spiral End Caps - 3” to 24” in stock Seamed 90° & 45° elbows - tack & sealed - 14” to 20” @ 90°, 14” to 18” @ 45° Spiral Reducers - 4>3 to 14>12 sizes, S.E./S.E., 26 ga. & 24 ga. Spiral Pipe - SMACNA standard, 10’ lengths, 3” to 24” Spiral Seam Elbows - 90°/45°, 4” to 18” sizes, 11⁄2 CLR S.E./S.E.
Hanging Systems
Clutcher System - clutcher sizes 10/20/30 & spooled wire rope - seismic tested - 5 to 1 safety factor Trapeze Hanger - support channel, 2”h x 11⁄2”w, 18 ga. ISO Hangers - prevent vibration - rubber insert, 3⁄8” threaded rod Round Duct Strap Bracket - holds up to 600 lbs. - 3⁄8” or 5⁄16” rod, 1” strapping, 18-22 ga. Hanger Strap - 1” strap, 16 ga. to 26 ga. @ 10’ lengths - strap-in-a-box - 18 ga. to 28 ga. @ 100’ or 200’ per box (varies by gauge) - 18 ga. 100# coils Diffusers - lay-in (t-bar ceiling), square & round, 24” x 24” / 12” x 12” sq. Egg Crate - aluminum, 24” x 48” Fire Damper Angle - 11⁄2” x 11⁄2”, 2” x 2”, 16 ga. - with or without holes
